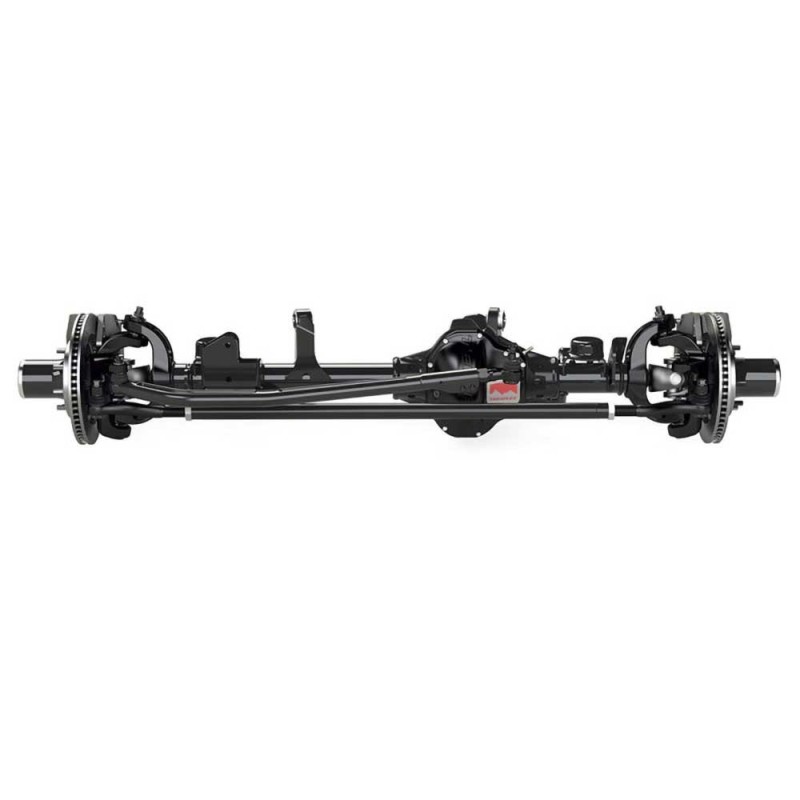

Asse anteriore Tera60 rapporto 4.88 con camera d'aria ARB Lift 0-6"

Name: Asse anteriore Tera60 rapporto 4.88 con camera d'aria ARB Lift 0-6"
Brand: TERAFLEX
SKU: TX3106488
Price: 18655.02 EUR
Availability: BackOrder

Riferimento TX3106488

Marca TERAFLEX

18.655,02 €

Tasse incluse

Quantità

Ordinabile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Descrizione
Dettagli del prodotto

Descrizione

Sealed SlimLock Locking Hub Assembly for long-term maintenance-free dependability
3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
70" WMS-WMS and 8x6.5" wheel bolt pattern
Fixed spindle mount hub assembly
Tera CRD60 specific high-pinion rear axle housing design
Includes 1350 series pinion yoke
35-spline inner and outer axle shafts
HD bearing caps increase rigidity and reduce ring & pinion distortion
Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
Built-in skimmer" cuts ring gear oil halo and forces it into the pinion bearings
Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
Oversized outer pinion bearing handles increased torque and high-load conditions
High-capacity housing holds maximum amount of oil
Asymmetric housing design for extra-long tube side strength
Pre-installed inner axle seals
Ductile cast iron housing w/ increased rib gussets
HD ductile iron differential cover w/ increased cover mounting area
Smooth radius bottom design to glide over rocks and obstacles
Integrating the front upper control arm mounts into the housing increases up travel an additional 2â€ compared to other aftermarket Dana 60 axles
High-flow oil passages
Reinforced front track bar mount (ties into spring pad) for greater strength
UV protected triple-stage powder coat for corrosion resistance
1/4"-thick CNC laser cut axle brackets for extreme strength
Pre-installed upper control arm bushings
Proper pinion angle and raised track bar bracket for lifted JL applications
Pre-tapped hole on spring perch for bump stop extensions
Pre-drilled holes for limit straps and lower spring retainers
Retains all JT ESP, ABS, and speedometer sensor capability
100% engineered, designed, and built in the USA w/ new components

Wrangler JL 2 Door 18-present;Wrangler JL 4 Door 18-present;Gladiator JT 20-present
