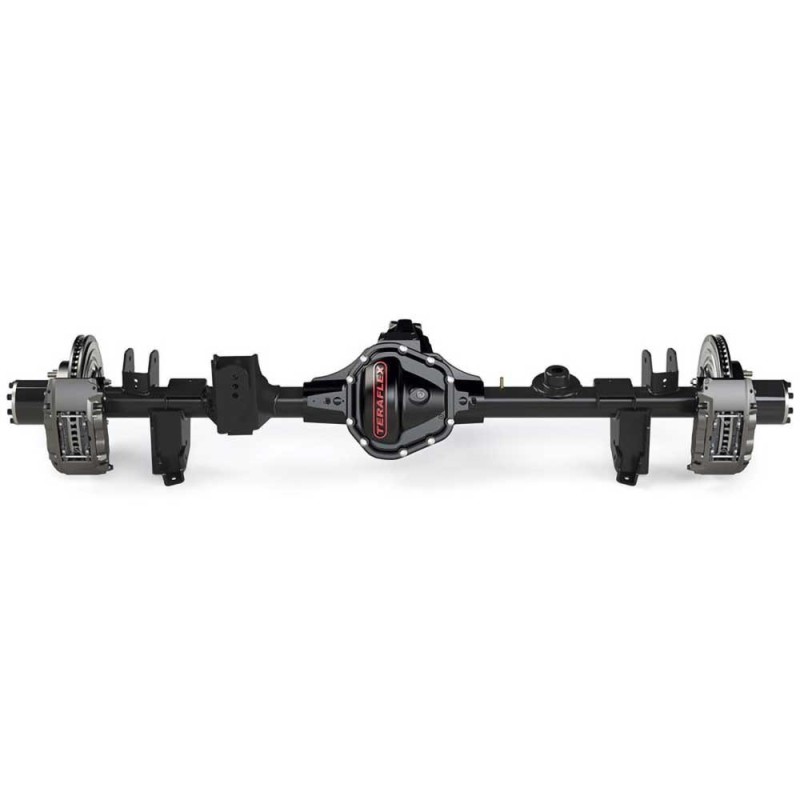

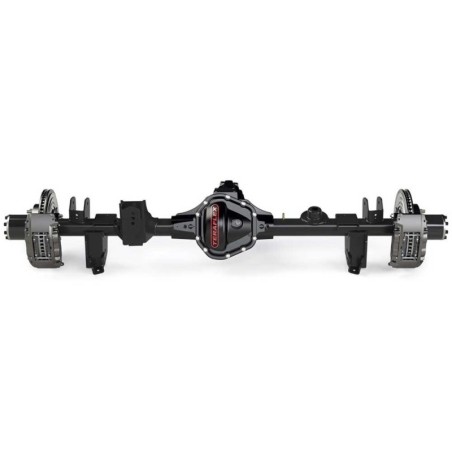

Asse posteriore rapporto CRD60 4.88 con camera d'aria ARB Lift 3-6"

Name: Asse posteriore rapporto CRD60 4.88 con camera d'aria ARB Lift 3-6"
Brand: TERAFLEX
SKU: TX4006488
Price: 15172.64 EUR
Availability: BackOrder

Riferimento TX4006488

Marca TERAFLEX

15.172,64 €

Tasse incluse

Consegnato in 7-14 giorni

Quantità

Ordinabile

Chiedi informazioni sul prodotto su WhatsApp

Termini e Condizioni

Descrizione
Dettagli del prodotto

Descrizione

Extreme duty full-float design
3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
70" WMS-WMS and 8x6.5" wheel bolt pattern
Fixed spindle mount hub assembly
Tera CRD60 specific high-pinion rear axle housing design
Includes 1350 series pinion yoke
35-spline inner and outer axle shafts
HD bearing caps increase rigidity and reduce ring & pinion distortion
Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
Built-in skimmer" cuts ring gear oil halo and forces it into the pinion bearings
Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
Oversized outer pinion bearing handles increased torque and high-load conditions
High-capacity housing holds maximum amount of oil
Pre-installed inner axle seals
Ductile cast iron housing w/ increased rib gussets
HD ductile iron differential cover w/ increased cover mounting area
Integrated lower control arm skid plates
High-flow oil passages
Reinforced rear track bar mount w/ multiple mounting locations
UV protected triple-stage powder coat for corrosion resistance
1/4"-thick CNC laser cut axle brackets for extreme strength
Pre-installed upper control arm bushings
Proper pinion angle and raised track bar bracket for lifted JL applications
Pre-tapped hole on spring perch for bump stop extensions
Pre-drilled holes for limit straps and lower spring retainers
Retains all JT ESP, ABS, and speedometer sensor capability
100% engineered, designed, and built in the USA w/ new components

Gladiator JT 20-present
